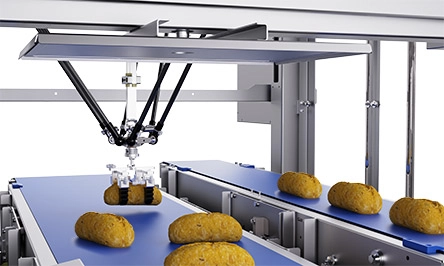

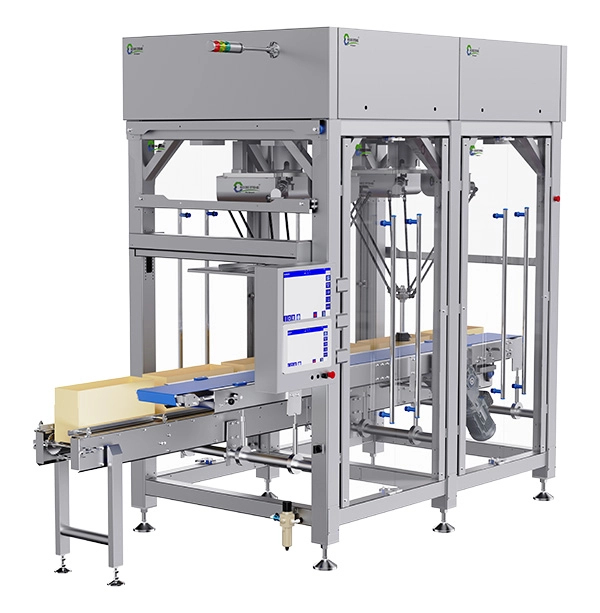

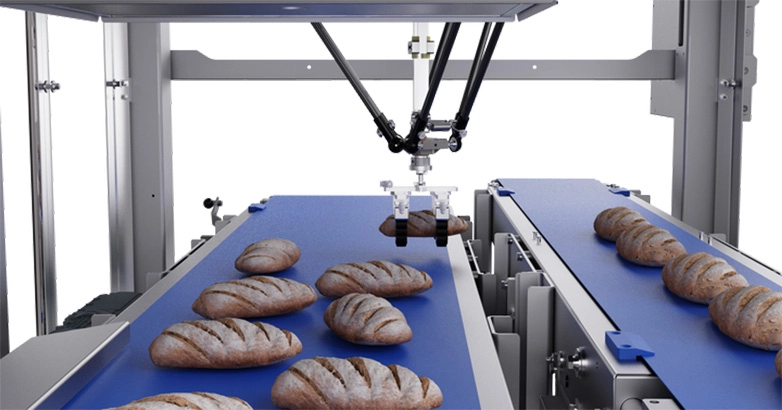

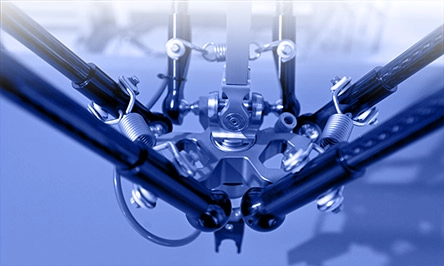

The single-link Delta robot workstation is a sorting solution featuring a single Delta robot, independently developed by Hengjiang Intelligence for food industry automation. With its modular design, this workstation offers flexible configurations to meet diverse production needs across scales. Leveraging Delta robots' unique high-speed, high-precision capabilities, it reliably performs tasks like grasping, stacking, and conveying in freezing environments, significantly enhancing production line automation and efficiency. Ideal for sorting and packaging frozen food products (e.g., donuts, dumplings, steamed buns), pharmaceuticals, electronics, and daily necessities, its efficiency, flexibility, and precision reduce costs, improve quality, and strengthen market competitiveness.

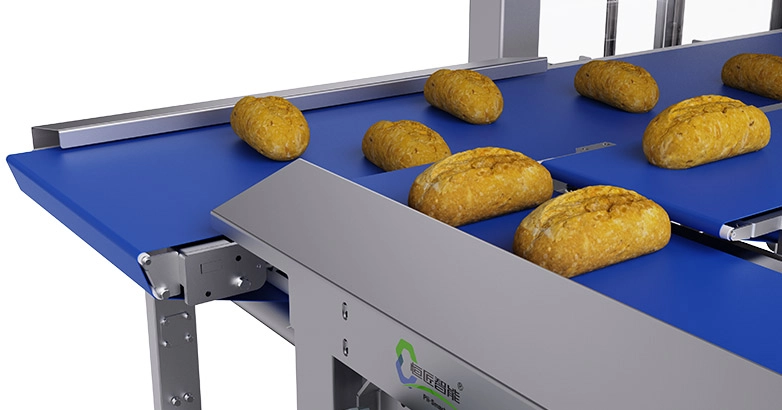

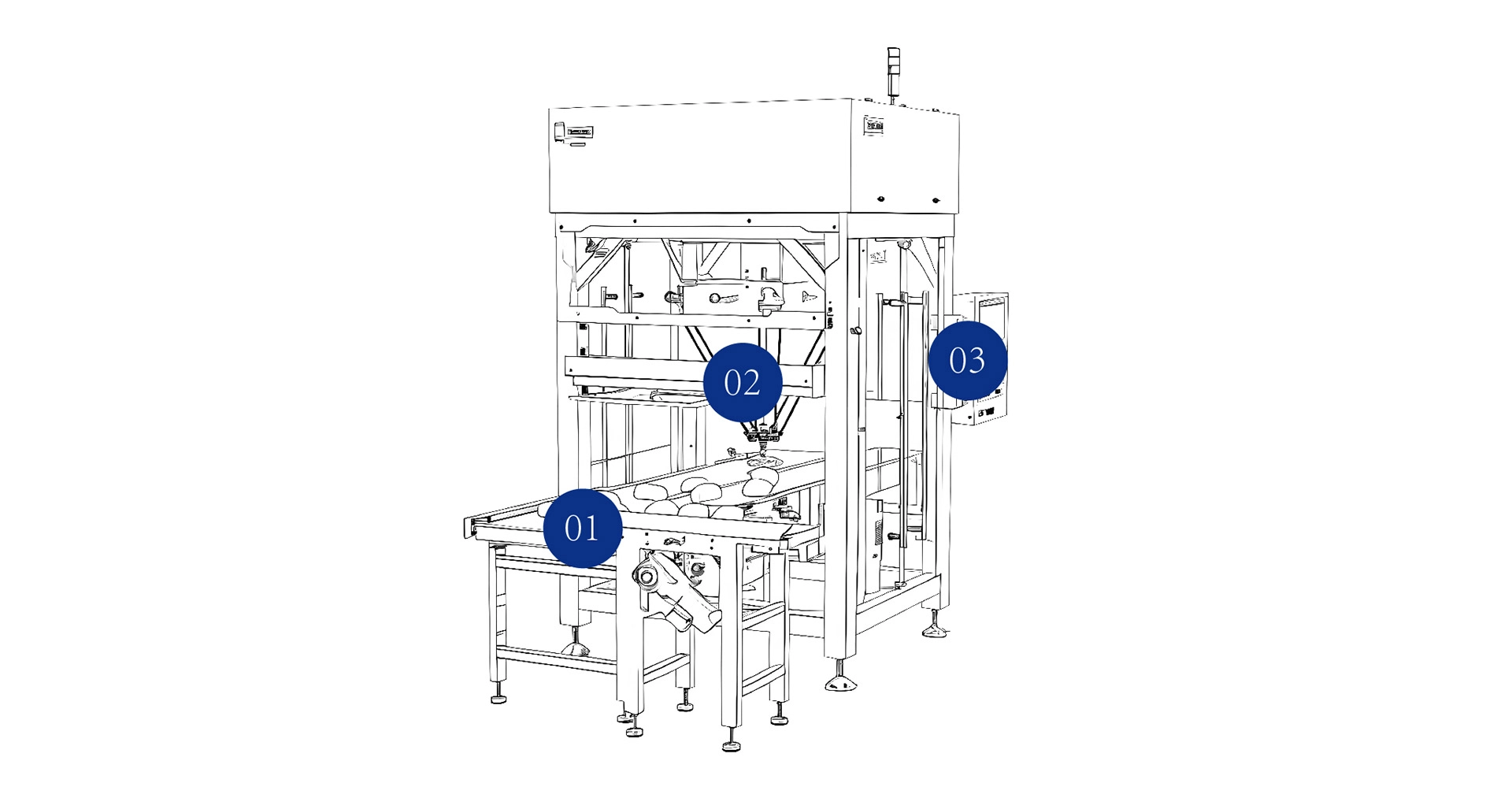

01 Buffer Docking: Material Infeed & Alignment
02 Vision Positioning System: Acceleration & Visual Inspection

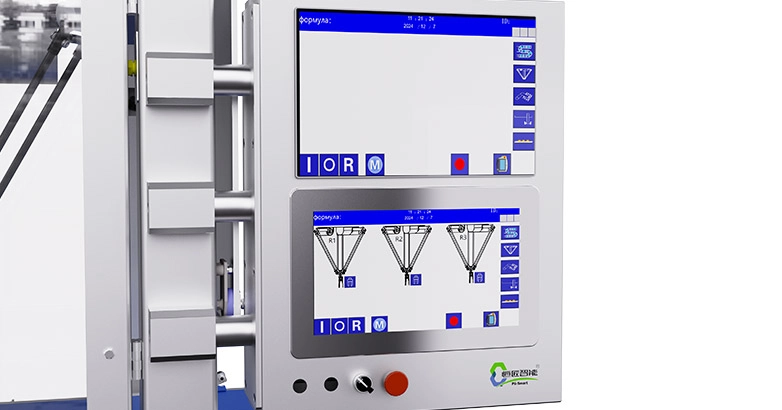

03 Human-Machine Interface (HMI) System
Advanced Operating System for Efficient Production
Quick & Easy Cleaning Mode
Advanced Design Minimizes Downtime to Cut Costs

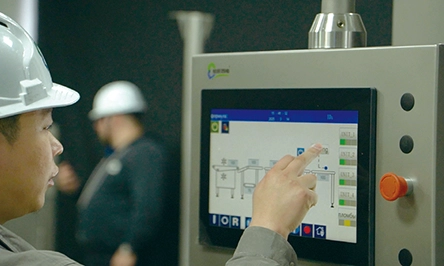

User-Friendly Operation via Mobile, Tablet, PC, and Built-In Touchscreen
Smart Efficiency for Reduced Energy Consumption
• Tightly matched to production systems to ensure throughput, with mobile, tablet, computer, and built-in touch-screen operation modes.
• Intuitive operation, accessible to semi-skilled personnel.
• Through an advanced control system, the stability of the dough forming system is precisely managed.
| Technical Parameters |
Equipment Dimensions: Voltage: Power Supply Capacity: Air Pressure Requirement: Flow Rate: Conveyor Belt Line Speed: |
3040*1811*2695mm AC380V+10-15% ＞215KVA ＞0.6MPa(6Kg/cm²) ＞2m³/min 430mm/s |
| Product Advantages |
Food Safety Compliance: Designed to meet food-grade safety standards, using dust-free environments and food-safe lubricants to ensure hygiene. High Automation: Precise material handling minimizes waste and labor costs by eliminating dropouts. Modular Design: Customizable modules cater to diverse robotic needs, adapting to any production requirement. Cold Environment Adaptability: Maintains stable, high-efficiency performance in freezing conditions for tasks like grasping, stacking, and conveying. Versatility: Streamlines production with integrated automation for stacking, conveying, and transferring products flexibly. Safety Protections: Built-in safeguards, including guardrails and safety doors, ensure operator security. High Speed & Precision: Delivers rapid, accurate grasping to boost efficiency and product quality. Pneumatic Grippers: The end-effector uses pneumatic grippers for reliable grasping/stacking, with interchangeable tools for diverse food handling. |
|
| Operating Environment |
Floor Load Capacity Ambient Temperature Ambient Humidity Vibration Interference |
Average Load ≥500kg/m² 5-40℃ Max75% or less No frost, no dew ≤0.5G Free from Strong Radio/Electromagnetic Interference |
